Production-use criteria

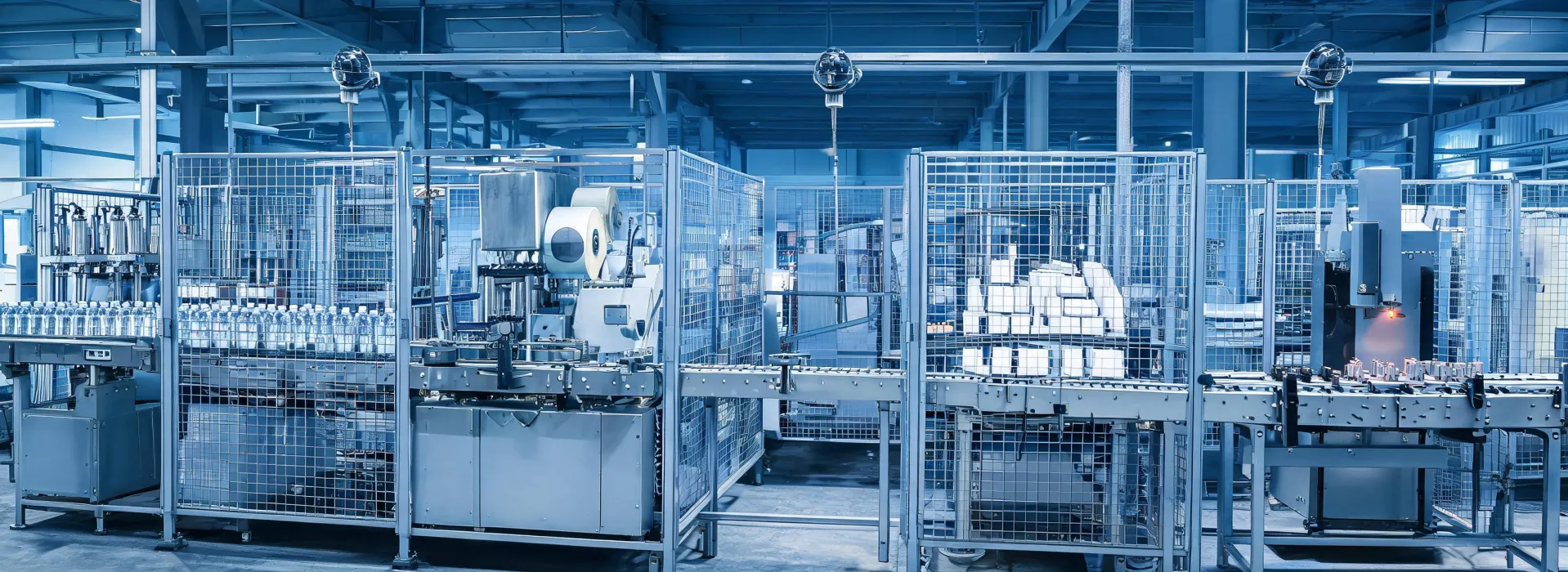

Packaging coding and component identification share one rule: the mark must survive the real line, material, inspection, and downstream handling. The appropriate source and optical setup are therefore selected by evidence, not by industry label alone.
Four operating contexts
Each context below identifies the production variables that should enter the sample matrix and acceptance plan. The examples describe selection logic; they do not assert a universal substrate result.
Glass, coated closures, PET, labels, and secondary cartons can require different absorption routes. The project checks condensation, curved-surface focus, line pitch, bottle handling, code inspection, and whether extraction can be routed without disrupting hygiene or access.
Thin films can be sensitive to heat, tension, barrier damage, and artwork variation. A UV or CO2 trial must inspect more than appearance: film strength, pinholing, seal-zone risk, web speed, print registration, fume behavior, and the packaging owner's compliance requirements.
Small codes and serialization data raise demands on focus, message control, vision lighting, user permissions, audit trail, and reject confirmation. Validation scope belongs to the regulated manufacturer; the laser cell must provide documented interfaces and repeatable challenge-sample handling.
Metal, anodized finishes, coated parts, and engineered polymers respond differently to near-infrared energy. Fiber trials assess contrast, surface change, corrosion or coating implications, fixture repeatability, code grading, and whether mark depth is permitted by the part drawing.
Method trade-offs
A shorter wavelength, higher nominal power, or larger marking field is not automatically better. The comparison below keeps material behavior, production rate, geometry, safety, and verification in the same decision frame.
| Decision factor | CO2 route | Fiber route | UV route |
|---|---|---|---|
| Starting material fit | Often screened for paper, glass, coated films, labels, and selected polymers. | Often screened for metals and selected polymers that respond near 1064 nm. | Often screened for heat-sensitive or high-contrast polymer and film applications. |
| Primary trade-off | Useful absorption can coexist with melting, scorching, edge growth, or coating variability. | Fast, compact marks may introduce heat, surface change, or limited contrast on some materials. | Lower thermal effect may come with process-speed, cost, service, or material-response constraints. |
| Geometry check | Focal distance, curved surface, lens field, product motion, and extraction hood clearance. | Fixture repeatability, working distance, field distortion, part height, and guarding access. | Web stability, small-code focus, contamination control, optical path, and usable marking window. |
| Acceptance evidence | Contrast, edge condition, durability, extraction observation, and readable code at worst-case speed. | Readability, surface integrity, fixture repeatability, downstream exposure, and drawing approval. | Readability, film or polymer integrity, permanence, production speed, and compliance-owner review. |
These are screening considerations, not model specifications. Available wavelength, power, pulse behavior, lens, interface, enclosure, environmental rating, and certifications vary by selected equipment and destination market. Final claims require the applicable datasheet, safety documentation, sample record, and site acceptance evidence.
List what would make the mark unacceptable—poor grade, weak contrast, film damage, coating change, lost data, missed reject, excessive fume, or insufficient cycle margin—then test for those conditions directly.
